7” Color TFT Module for elevator and buildings
The 7 "256-color MD-154B screen provides exceptionally high contrast, color saturation and luminance and a series of performance improvements such as natural color, anti-glare screen and wide viewing angles.
More than a screen, with incredible functionality and price.
Global Display offers you a new form of completely dynamic and reliable communication, and equipped with the best features and advantages.
The MD-154C screen provides exceptionally high contrast, color saturation and luminance and a series of performance improvements such as natural color, anti-glare screen and wide viewing angles.
The best of the MD-154C
- Compatibility and versatility
- 7 ”size. Horizontal and vertical orientation
- Has 256 colors
- Built-in speaker to play audio messages
- Modern and attractive with an INNOVATIVE touch

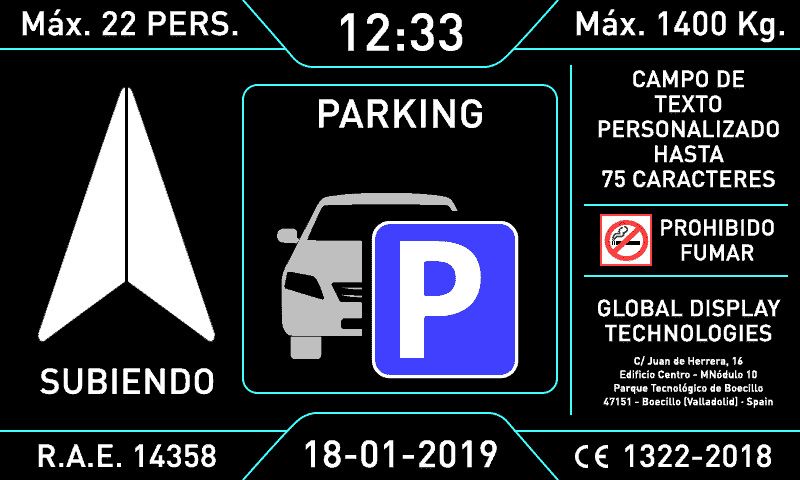

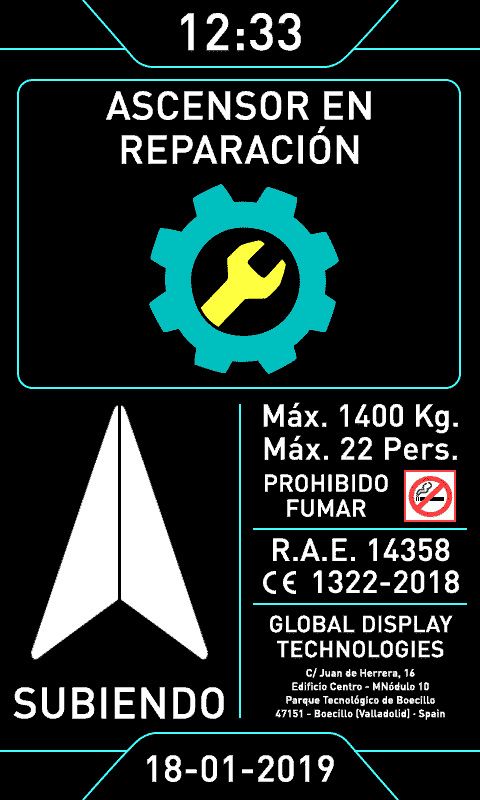

- Allows you to choose between different designs, special images and animations
- High luminance
- Incredibly sharp and exciting images
- Anti-glare treatment
- Wide viewing angle
- LED backlight
- Good performance at a very competitive price
|Fastening screws in rectangle||133x133 mm.|

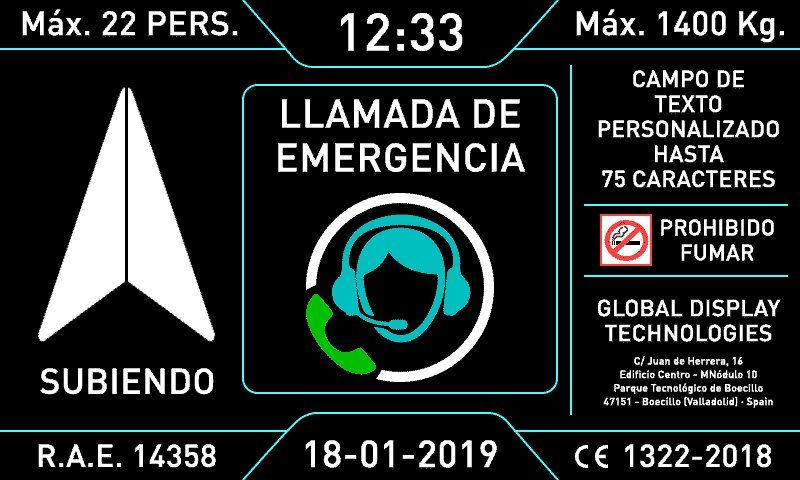

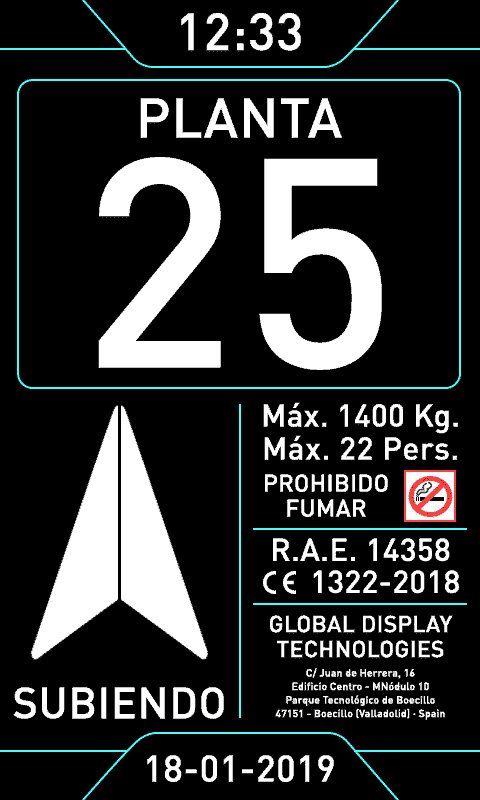

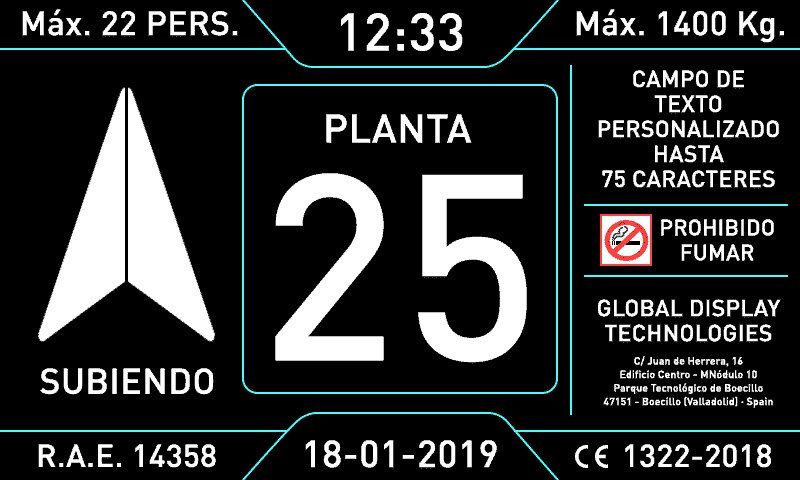

|Orientation||Horizontal / Vertical|
|Display||7-inch TFT display - 800x600 pixels|
|Viewing angle||140º long side, 120º short side|
|Luminance - Contrast||800 cd/m2 - 1:500|
|Temperature range||Storage: -30ºC to 70ºC (240 h.)
Operation: -20ºC to 60ºC (240 h.)
|Microcontroller||ARM Cortex M0 32-bit|
|Speaker||Built-in (Volume with potentiometer)|
|Emergency LEDs||Available according to protocol|
|Power supply||24 VDC (8 VDC - 30 VDC)
100 mA (2,4W)
|Communications ports||Parallel / Autonomous (only connector with 8 + 2 wires) configurable
CAN Protocol (terminator with jumper)
RS-485 Protocol (optional, excluding with CAN)
