MD-090

7” TFT color module for elevator and buildings

The MD-090 screen provides a very high contrast, saturation and brightness with a series of added improvements in performance such as natural color, anti-glare system and wide viewing angles.

The best of MD-090

  • Compatible and versatile
  • Modern, attractive and innovative design
  • Remote content update, date and time
  • Very sharp images with a wide viewing angle
  • Anti-glare treatment
  • LED backlight
  • Competitive price



MD-090 Features

Multimedia color TFT panel

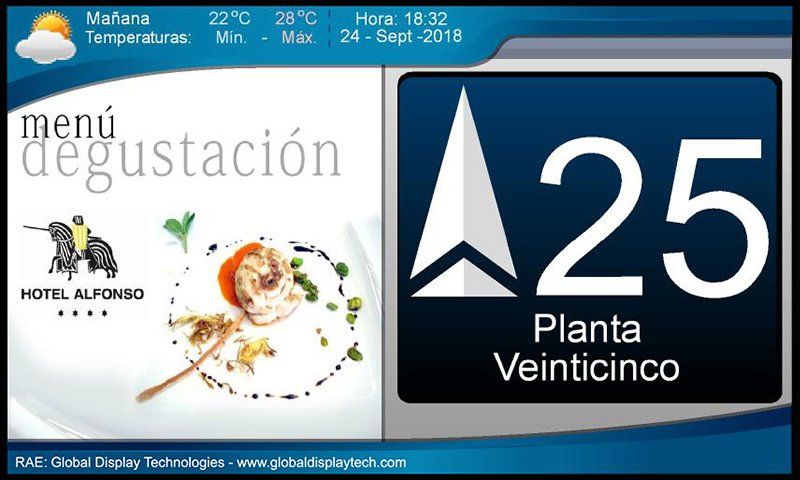

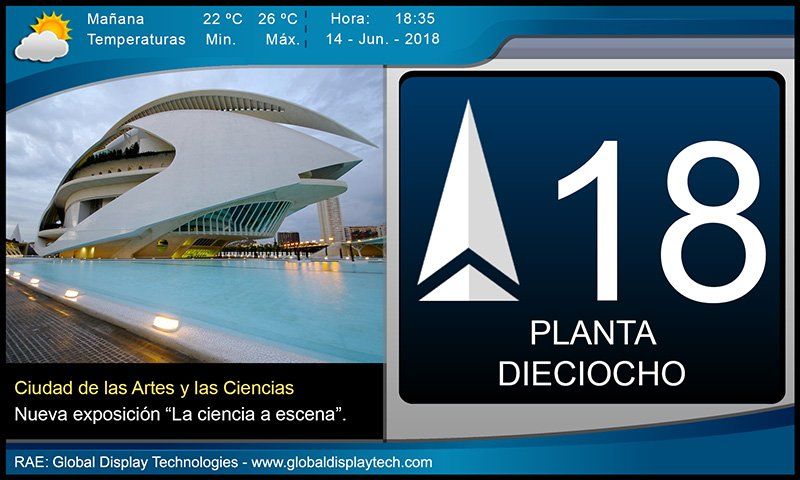

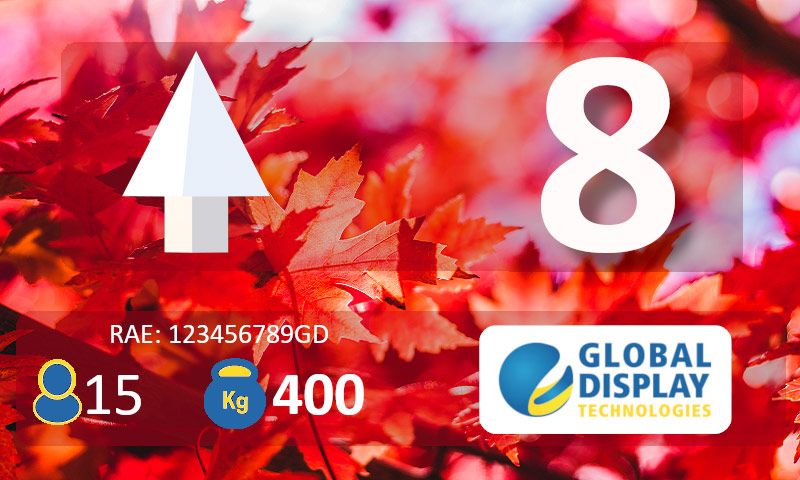

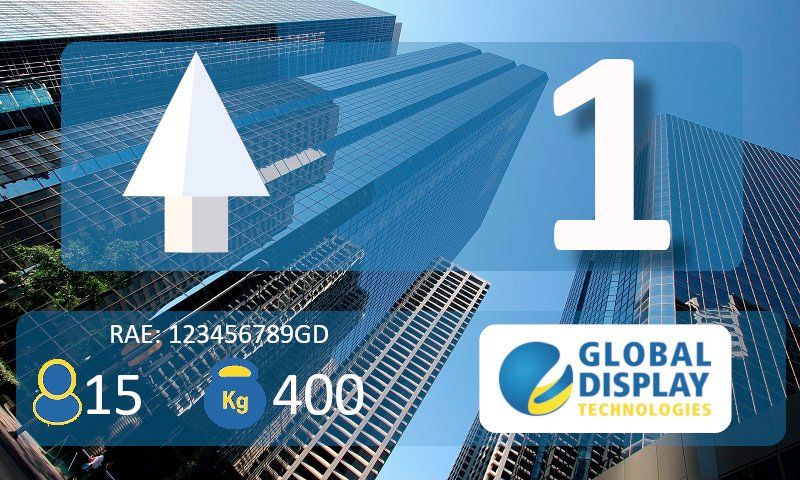

Contents and static images

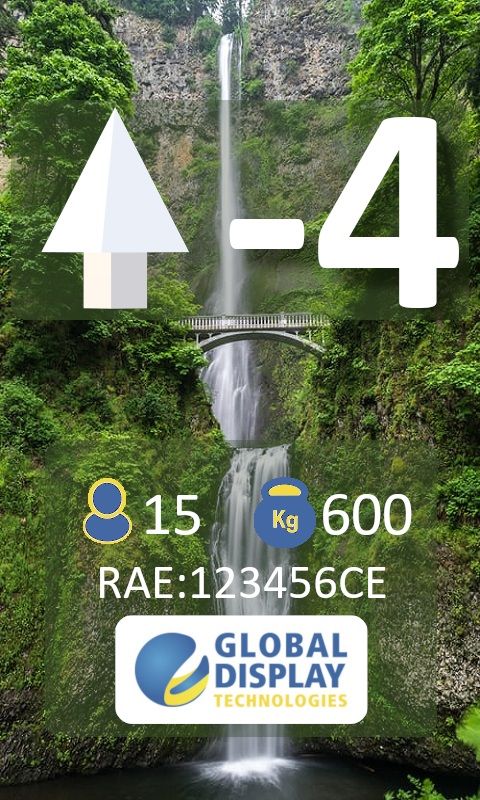

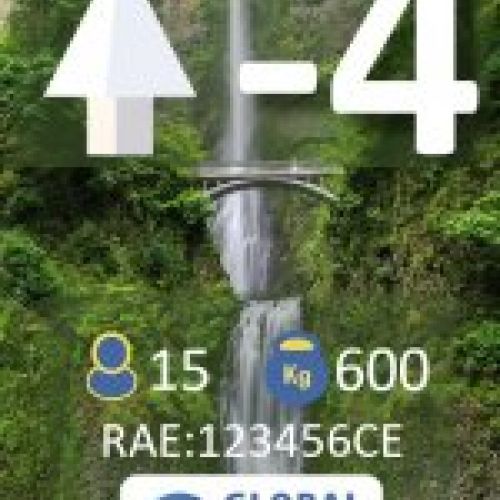

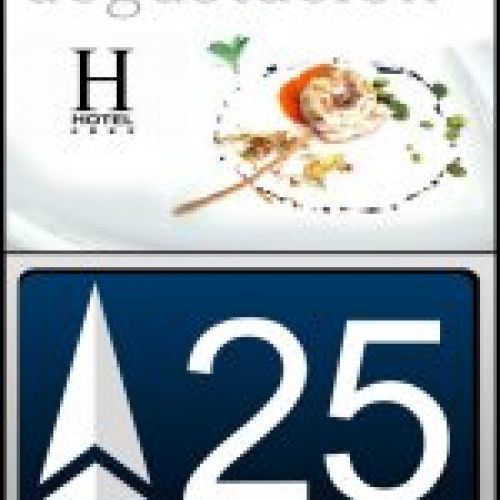

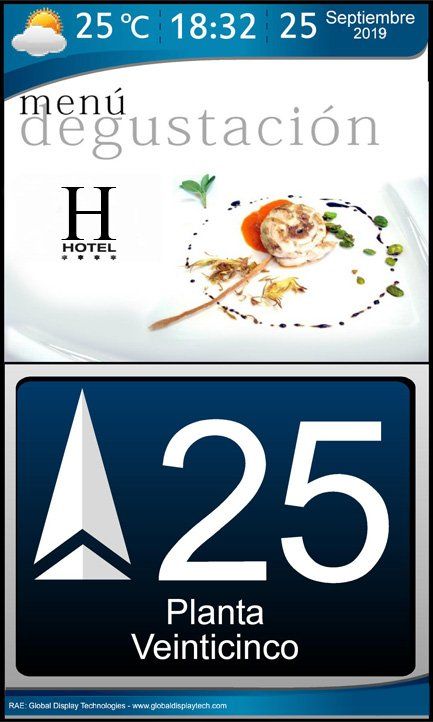

Horizontal or vertical orientation

Audio 16 bits

Temperature sensor

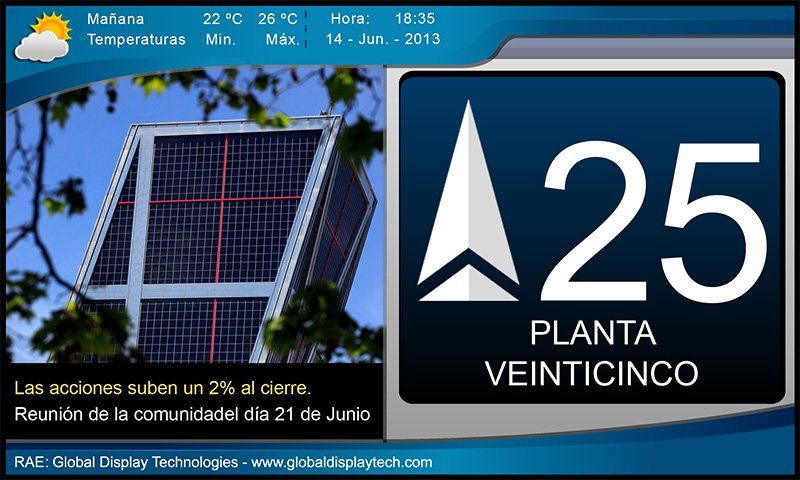

Updated weather information

News / RSS feeds

USB content update

Built-in clock with battery

Custom firmware

Storage MMC / SD / SDHC cards

Ethernet 10/100 Mb/sec

Emergency LEDs

Energy saving mode

Vandal-proof design (optional)

Connectivity RS232 / RS485 / LIN / CAN / USB / parallel optoisolated



Content Update

The contents that appear on the screen can be modified or updated in the following ways:

  • Update via USB
  • Update from PC via Intranet
  • Content update through an RSS feed
  • Remote update from Web Server or Cloud (i.e. dropbox)



Technical specifications

Supply voltage 24 V (12 V – 27 V DC)
Emergency supply voltage 12 V (12 V – 27 V DC)
Maximum consumption 360mA at 24 V
Screen resolution 800x480 píxels
Mechanical dimensions 165x140x29,0 mm
Operating temperature 0 to 50 ºC
2x actuators (24V DV) For connecting relays or LEDs
Colors 65.535 RGB
Luminance 300 cd/m²
Communications ports

Parallel (optoisolated inputs) 24 V DC

USB device / USB host

Ethernet 10/100 Mb/s

RS-232 / RS-485 Protocols

CAN Protocol

LIN Protocol

Serial port
